Social Media Graph

Purpose:To practice and demonstrate proficiency in creating, manipulating and utilizing graphs as well as previously studied Abstract Data Types (ADTs) / data structures, including linked lists, dictionaries / maps, heaps, (priority) queues, and stacks, using the Java language.

For this project, I worked with Jordan to design and implement an application that maintains the data for a fictional social media network using a graph data structure. Each user in the network has a profile containing their name, optional profile picture, current status, and a list of their friends.

The application provides a menu that allows a user to:

• Join the network (by creating a profile)
• Modify their profile
• Display a list of all the profiles in the network
• Add a friend (from the displayed list)
• See a list of their friends
• See a list of their friend's friends
• Leave the network (by removing their profile)
• Change the current user
• Add additional new user profiles (admin privilege, for demoing)
• Remove user profiles (admin privilege, for demoing)
• End the program, resetting the graph to empty])

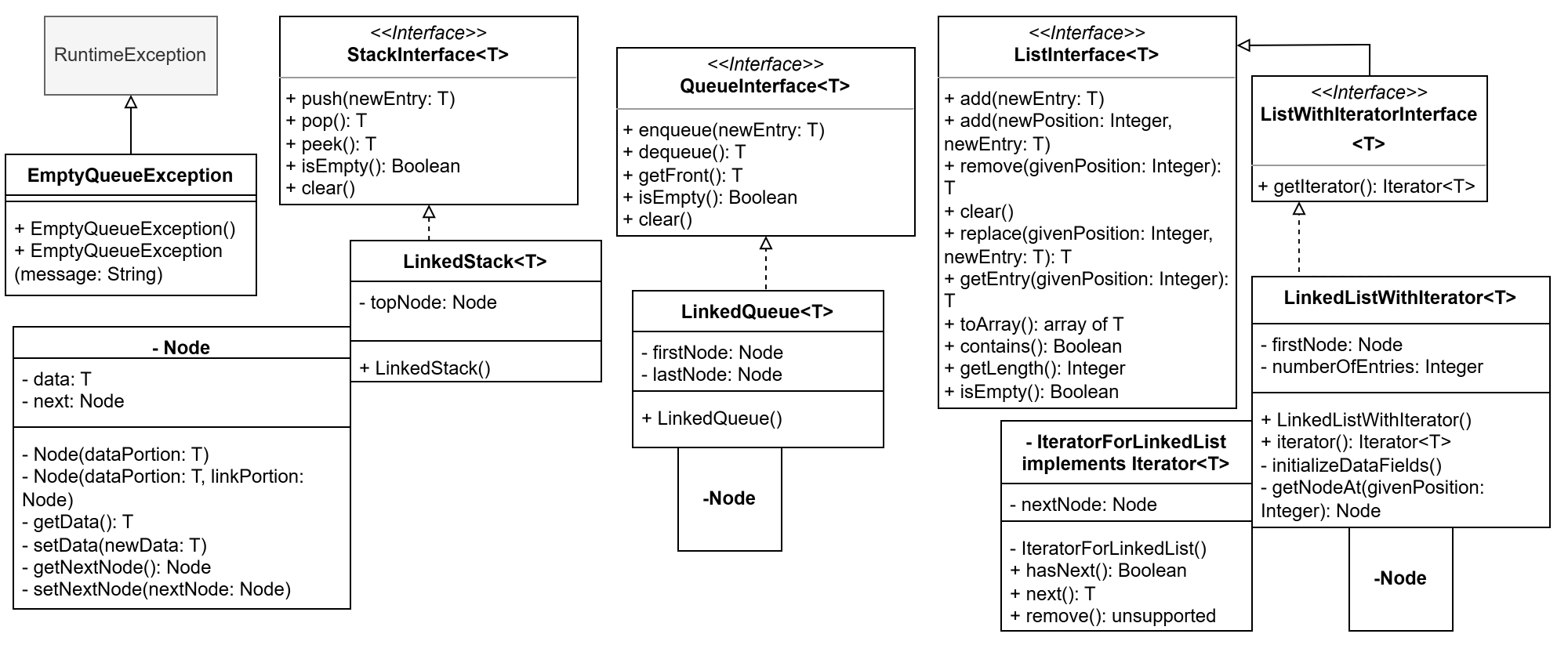

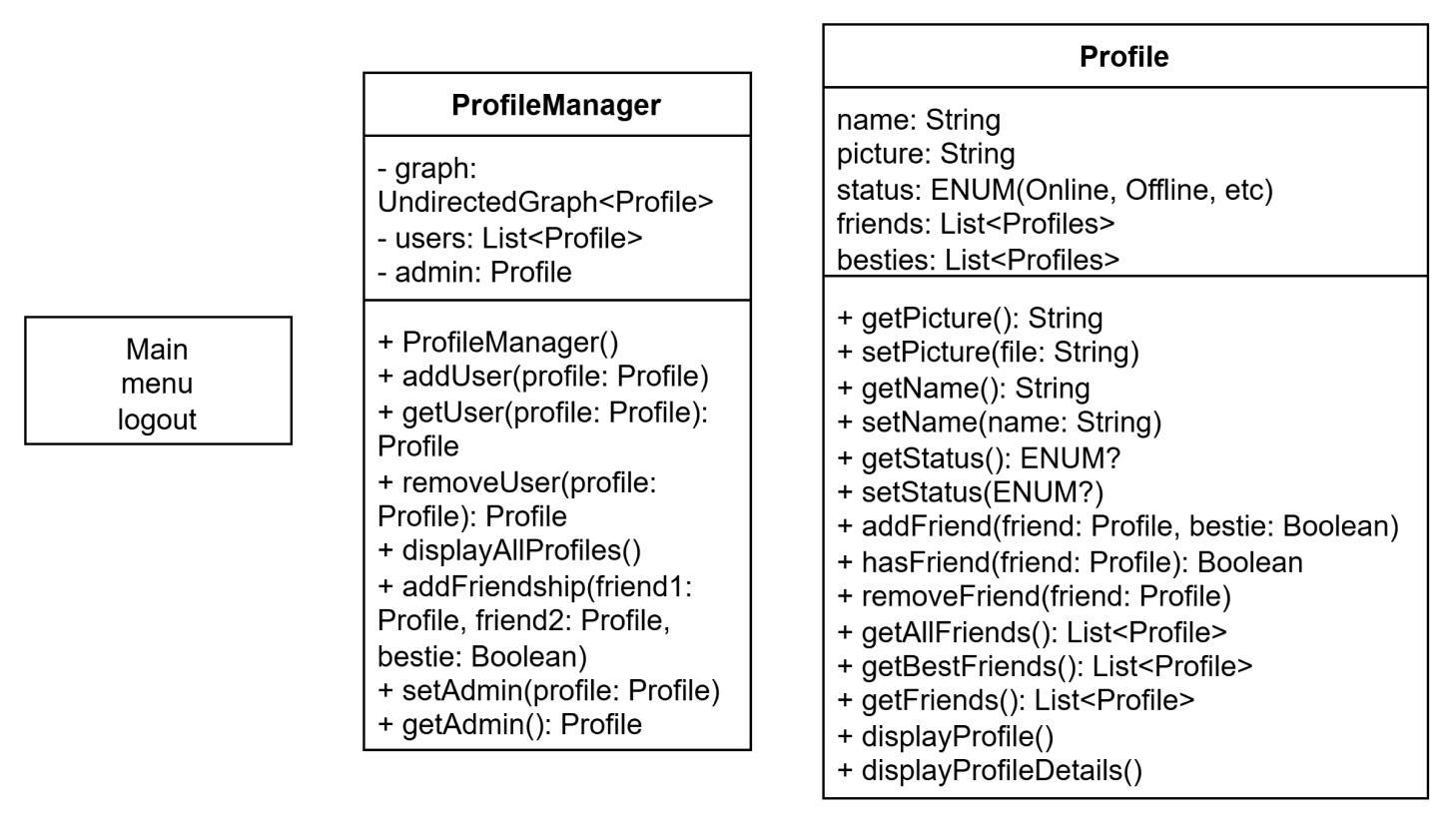

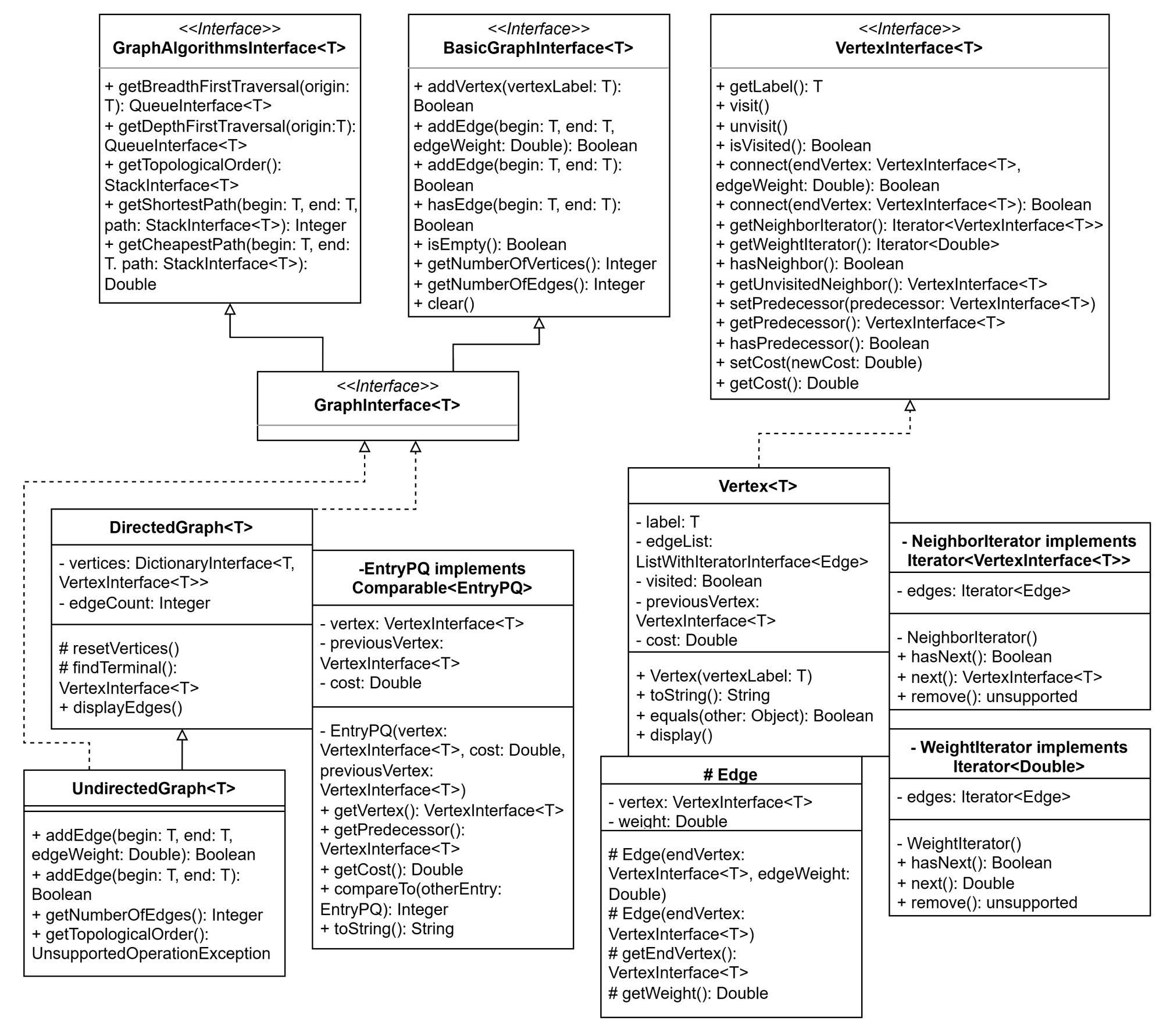

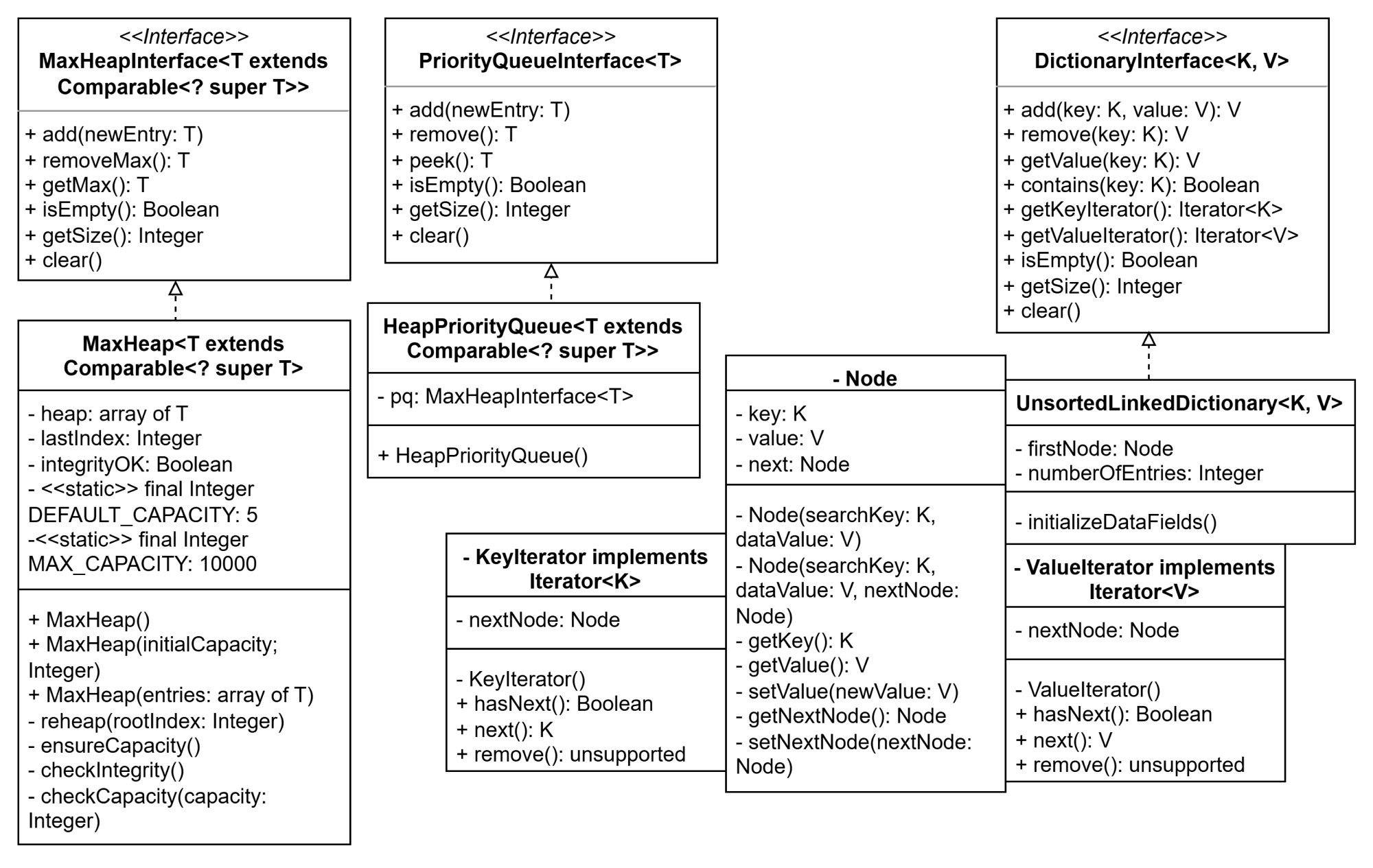

We created UML class diagrams to define various interfaces, classes, methods, and fields, for reference while implementing the application.

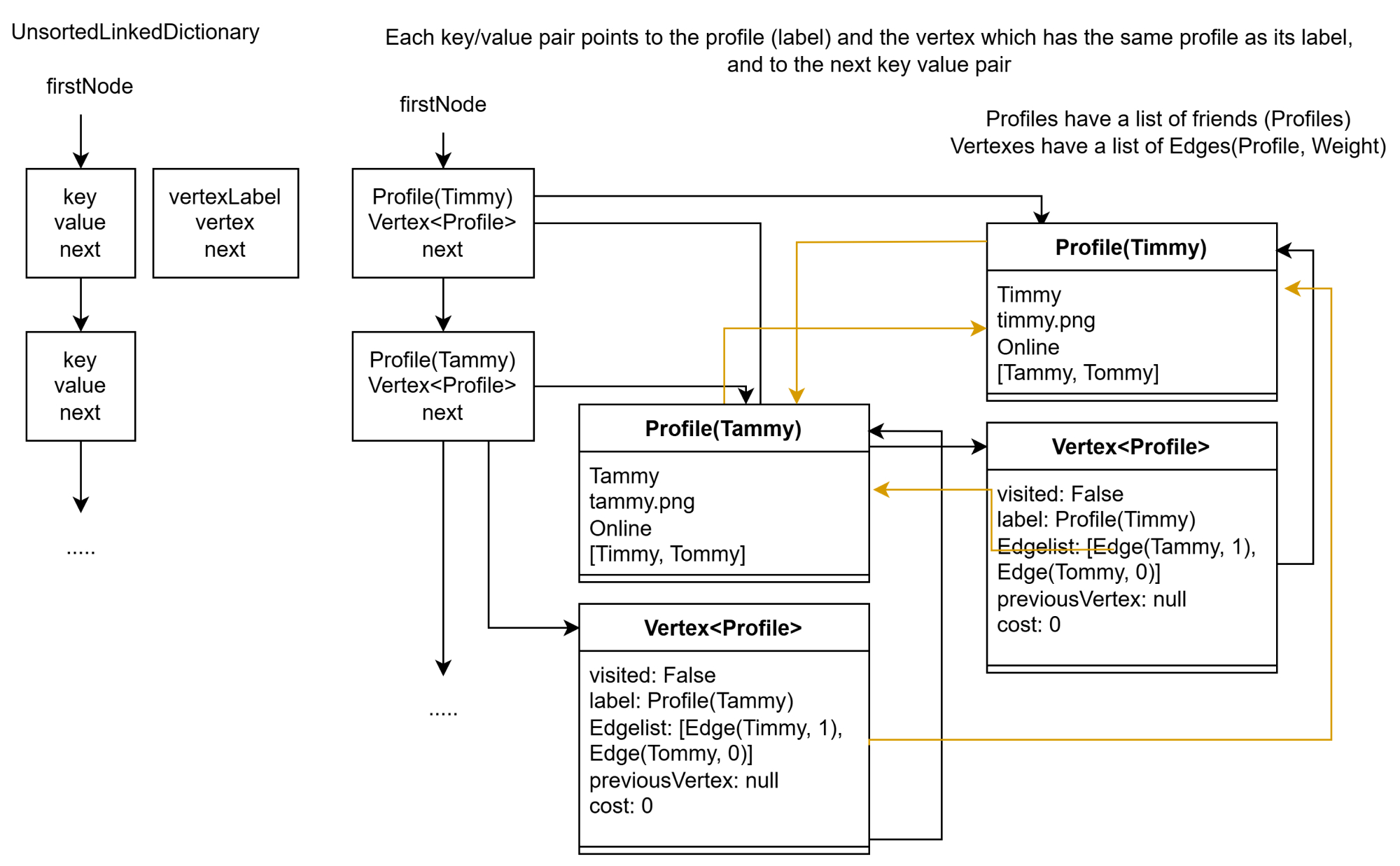

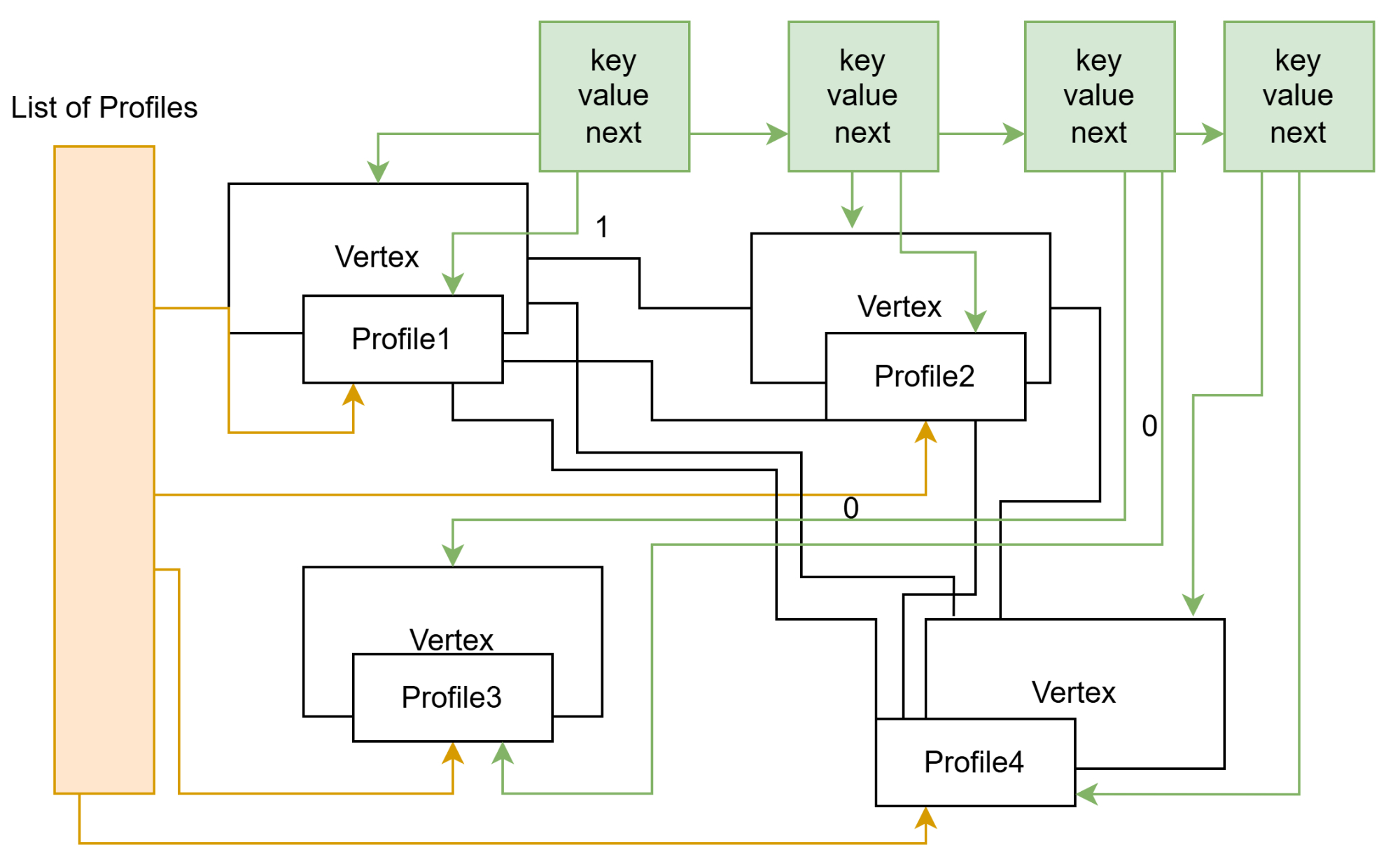

We also created object diagrams in order to clarify the relationships between various data structures and the data within them, such as profiles.

The undirected graph inherits the directed graph, which is actually the implementation of a LinkedDictionary. There are layers and layers of data structures here.

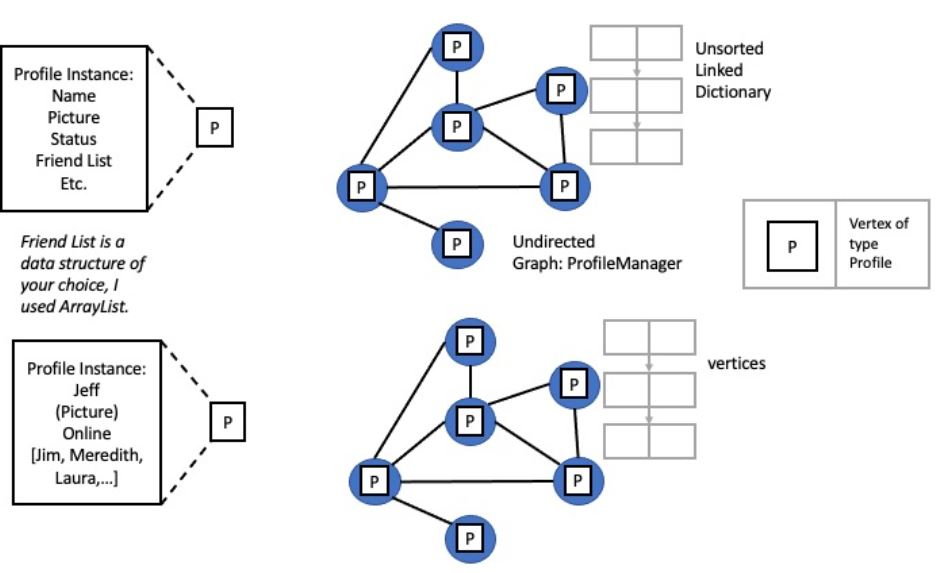

The undirected graph holds the new profiles but unless they are friends, there will be no edge between them. That means you could add 10 profiles and it would be a graph with no edges. You cannot traverse a graph with no edges. This is why there must be a list of existing profiles in order to display them or traverse them.

When a profile is deleted, it is removed from all relevant data structures, including the graph, main list of profiles, and friend lists.

• Social Media Implementation

  • Profile

    Holds information about each user

  • ProfileManager

    Manages the profiles in the undirected graph / social network

  • Main

    Where you run the application

• ADTPackage

  • DictionaryInterface

    • LinkedDictionary

  • ListInterface

    • ListWithIteratorInterface

      • LinkedListWithIterator

  • MaxHeapInterface

    • MaxHeap

  • PriorityQueueInterface

    • HeapPriorityQueue

    • PriorityQueue

  • QueueInterface

    • LinkedQueue

  • StackInterface

    • LinkedStack

• Create a new profile with a picture (optional), name, status and a list of friendProfiles (constructor)
• Get the optional profile picture
• Set and get the name
• Set and get the status
• Add or remove a friend
• Print out all the details of the profile including the list of friends

• Create an undirected graph
• Add a profile to an undirected graph
• Connect two vertexes on the graph (create a friendship between profiles)
• Display all of the profiles
• Display each profile's information and friends (through a breadth first traversal)
• Remove a profile

In addition to the GitHub README, Javadoc comments are on each function to explain what they do, except where the Javadoc is inherited from the implemented interface.

We implemented programmatic testing to ensure proper functionality of the graph data structure, creating a Main for each variation, including Directed Weighted (MainDW.java), Directed Unweighted (MainDU), Undirected Weighted (MainUW), and Undirected Unweighted (MainUU). Since true unit testing is very complex for graphs, we implemented testing based on examples provided by the data structures course. This helped us to verify that the graph was implemented correctly before using it in the social media program.

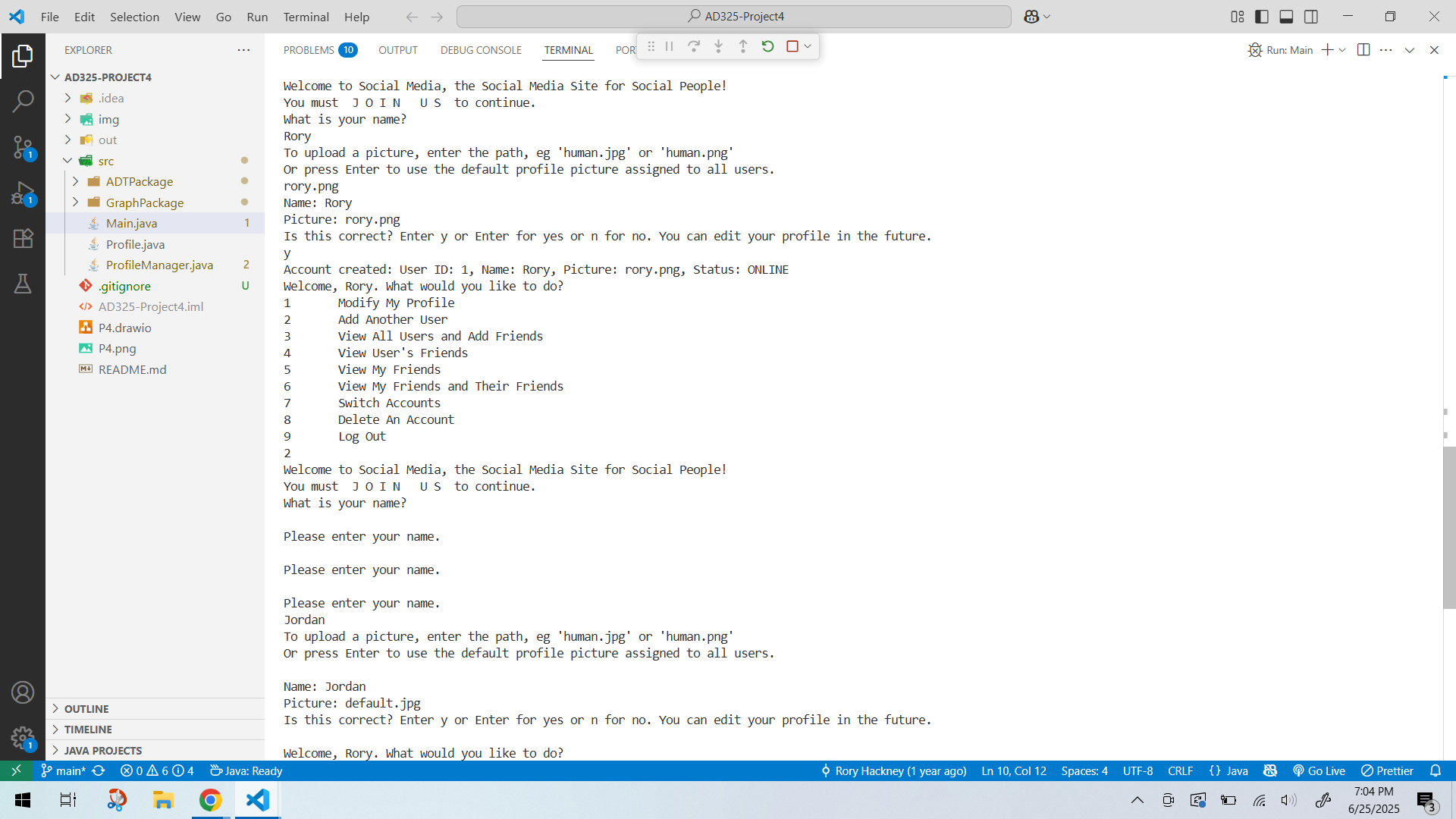

When Main is run, the menu simulates a user interacting with the social media system. The user has admin rights to create new profiles, delete anyone's profile, etc, in order to demo the functionality of the application. On run, the user must create a profile, and the current user is stored in a variable. This allows the current user to be switched. The user interacts by typing things into their keyboard based on the displayed prompt.

1. Modify My Profile
2. Add Another User
3. View All Users and Add Friends
4. View User's Friends
5. View My Friends
6. View My Friends and Their Friends
7. Switch Accounts
8. Delete An Account
9. Log Out

Thanks for checking out my project!
